Getting Started

This chapter is intended to help you get started as easily as possible with EV charging together with the Charge Control C and the EVerest charging stack. For this purpose, a basic AC PWM charger is set up as an example and explained step by step.

Setting Up the Hardware

Hardware Components

The following hardware components are required to set up the basic AC PWM charger:

  • Charge Control C

  • 12 V DC Power Supply

  • Power Contactor

  • IEC 62196 Type 2 three-phase EV charging socket outlet

  • Ethernet cable for SSH connection or a USB-to-serial adapter for serial connection

  • IEC 62196 Type 2 EVSE Test Adapter (e.g. Metrel or Benning) to simulate the EV

  • Wiring material

Hardware Overview

Warning

Before you start setting up the hardware, please read the Safety Notes.

The following figure shows the basic setup of the AC PWM charger with the Charge Control C:

_images/ac_pwm_charger_ccc_setup.svg

Fig. 2: Basic Setup of the AC PWM Charger with the Charge Control C

Note

The pin assignment of the Charge Control C can be found in the Board Connections section.

Note

Before you start setting up the hardware, please check whether the HW components used are also listed in Hardware Components section.

First Startup

Boot Process

Here are some key points about the boot process of the Charge Control C:

  • The file system basically consists of three ext4 partitions. Two partitions are used as slots for the RAUC update process. The third partition is not touched by the RAUC update process and is usually used for storing update bundles, logs, etc. For more information about the firmware in general, firmware updates and the partition layout, see the Firmware chapter.

  • After connecting the Charge Control C to the power supply, the U-Boot bootloader starts the currently active slot managed by RAUC.

  • The LED status indicators on the Charge Control C provide information about the current status of the boot process.

  • EVerest is automatically started with the default configuration of chargebyte after the boot process is completed. The initial configuration is explained in the Initial Configuration section.

Understanding LED Status Indicators

Now you can plug in the Charge Control C to the power supply. The LED status indicators on the Charge Control C provide information about the current status of the boot process. The following table shows the meaning of the LED status indicators:

Table 2: Charge Control C LED Status Indicators

State

LED indication

Behavior

Bootloader active

LED1 (green)

off

LED2 (yellow)

off

LED3 (red)

permanently on for approx. 3 sec.

Boot process running

LED1 (green)

blinking for approx. 15 sec.

LED2 (yellow)

off

LED3 (red)

blinking

Operating system running

LED1 (green)

permanently on

LED2 (yellow)

off

LED3 (red)

blinking

Connecting via SSH or Serial Interface

For debugging, there are two ways to connect the developer computer to the charge controller: via SSH or via serial interface. The following sections explain how to connect to the charge controller using PuTTY. You can also use other terminal programs (like e.g. MobaXTerm) to connect to the the charge controller.

SSH Connection with PuTTY

Here are the steps to connect to the charge controller via SSH using PuTTY:

  1. Install PuTTY on your computer. You can download PuTTY from the following link: PuTTY Download.

  2. Connect the charge controller over Ethernet to your computer.

  3. Start PuTTY and enter the IPv4 fallback address “169.254.12.53” of the charge controller in the “Host Name (or IP address)” field (See figure PuTTY SSH Configuration).

  4. Click on “Save” to save the configuration and then click on “Open” to start the connection.

  5. A PuTTY Security Alert window will appear. Click on “Accept” to continue.

  6. Enter the username “root” and the password “zebematado” to log in to the charge controller.

Note

The username can also be stored under “Connection -> Data -> Auto-login username” in the PuTTY configuration.

Note

It is also possible to install an SSH key on the charge controller to log in without a password. Please look online for instructions on how to do this on a Linux system.

_images/putty_config_ssh_fallback_ip.png

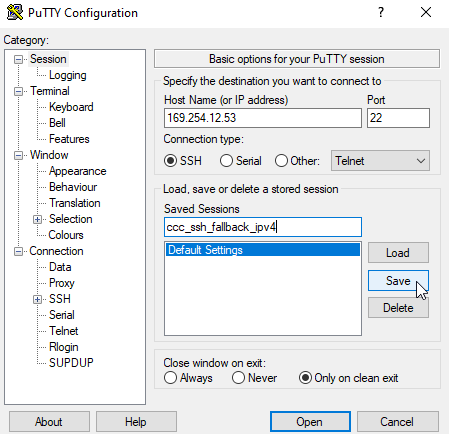

Fig. 3: PuTTY SSH Configuration

Serial Connection with PuTTY

Here are the steps to connect to the charge controller via serial interface using PuTTY:

  1. Install PuTTY on your computer. You can download PuTTY from the following link: PuTTY Download.

  2. Connect the charge controller to your computer via a USB-to-serial adapter.

  3. Start PuTTY and configure the COM port of the USB-to-serial adapter (e.g. “COM1”) in the “Serial line” field. Note: You can find the COM port of the USB-to-serial adapter in the Windows Device Manager under “Ports (COM & LPT)”.

  4. Switch to Connection -> Serial configuration and set the “Speed” to 115200, “Data bits” to 8, “Stop bits” to 1, “Parity” to “None” and “Flow control” to “None” (See figure PuTTY Serial Configuration).

  5. Switch back to the “Session” and click on “Save” to save the configuration (See figure PuTTY Save Serial Connection).

  6. Click on “Open” to start the connection.

  7. Now a black window will appear. Press enter to get the login prompt.

  8. Enter the username “root” and the password “zebematado” to log in to the charge controller.

_images/putty_config_serial_1.png

Fig. 4: PuTTY Serial Configuration

_images/putty_config_serial_2.png

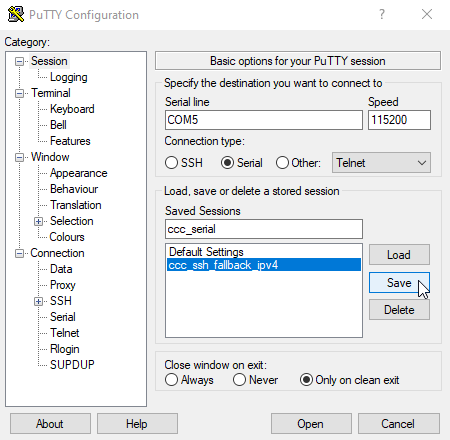

Fig. 5: PuTTY Save Serial Connection

First Firmware Update

When the Charge Control C is manufactured, a stable software version is flashed onto it.

However, due to organizational processes and the continuous nature of software development, this version may already be outdated.

We therefore recommend checking first, whether a software update for the Charge Control C is already available for download. If so, it should be installed immediately, as it likely includes bug fixes and possibly new features.

Please look at section Firmware Upgrade for further details, e.g. where to find the firmware update images and how to install them.

Note

How to download the firmware image is described in the section Download EVerest Firmware Images.

Note

Before installation of a chargebyte EVerest image, please check whether you are installing a developer or release image and prepare the Charge Control C accordingly. How to do this is explained in the Release Images vs Development Images section.

Note

In case you are updating from a chargebyte proprietary image to a chargebyte EVerest image, please read the Updating from chargebyte’s proprietary charging stack to EVerest-based charging stack section carefully.

Initial Configuration

Now you are connected to the Charge Control C and we can take a deeper look at the initial configuration.

The configuration files of the EVerest charging stack are stored in the directory “/etc/everest”. EVerest uses the YAML format for the configuration files. EVerest runs as a systemd service that by default uses “/etc/everest/config.yaml” as a configuration setup. If you take a look at the content of the configuration file, you will see that it is only a reference to the “bsp-only.yaml” file.

Note

If you create an own configuration file, you can also store it in the “/etc/everest” directory and create a symbolic link to it like “ln -sf /etc/everest/my-config.yaml /etc/everest/config.yaml”. The file where the “config.yaml” symbolic link points to is preserved during the update process.

root@tarragon:/etc/everest# ls -l /etc/everest/
total 28
-rw-r--r-- 1 root root 1134 Jun 20 07:45 bsp-only.yaml
lrwxrwxrwx 1 root root   14 Jun 25 19:26 config.yaml ->  my-config.yaml

Let’s take a look at the content of the bsp-only.yaml configuration file. This file is already prepared for the basic AC PWM charger setup.

Just type “less /etc/everest/bsp-only.yaml” to see the content of the configuration file:

 1#
 2# This example configuration can be used as bare minimum starting point:
 3# no support for plug lock, no additional peripherals (RFID, meter...)
 4#
 5active_modules:
 6  api:
 7    module: API
 8    connections:
 9      evse_manager:
10        - module_id: connector
11          implementation_id: evse
12      evse_energy_sink:
13        - module_id: grid_connection_point
14          implementation_id: external_limits
15      error_history:
16        - module_id: error_history
17          implementation_id: error_history
18  rpc_api:
19    module: RpcApi
20    connections:
21      evse_manager:
22        - module_id: connector
23          implementation_id: evse
24      evse_energy_sink:
25        - module_id: grid_connection_point
26          implementation_id: external_limits
27      charger_information:
28        - module_id: charger_info
29          implementation_id: main
30  charger_info:
31    module: ChargerInfo
32    config_module:
33      firmware_version_file: /usr/share/secc/VERSION
34    connections:
35      kvs:
36        - module_id: kvs
37          implementation_id: main
38  kvs:
39    module: YamlStore
40    config_module:
41      file: /etc/everest/charger_info.yaml
42  bsp:
43    module: CbTarragonDriver
44    config_module:
45      contactor_1_feedback_type: none
46  tarragon_dig_in_ref:
47    module: CbTarragonDIs
48  connector:
49    module: EvseManager
50    mapping:
51      module:
52        evse: 1
53    config_module:
54      connector_id: 1
55      has_ventilation: false
56      disable_authentication: true
57    connections:
58      bsp:
59        - module_id: bsp
60          implementation_id: evse_board_support
61  energy_manager:
62    module: EnergyManager
63    connections:
64      energy_trunk:
65        - module_id: grid_connection_point
66          implementation_id: energy_grid
67  grid_connection_point:
68    module: EnergyNode
69    mapping:
70      module:
71        evse: 1
72    config_module:
73      fuse_limit_A: 16
74      phase_count: 3
75    connections:
76      energy_consumer:
77        - module_id: connector
78          implementation_id: energy_grid
79  error_history:
80    module: ErrorHistory
81    config_implementation:
82      error_history:
83        database_path: /tmp/error_history.db

In general, the EVerest charging stack consists of different modules, each designed for a specific task. An EVerest module provides and requests interfaces and defines module-specific configuration parameters. The EVerest configuration file specifies the activated modules, their configurations, and their connections via these interfaces. The following figure illustrates how the EVerest modules are connected to each other in the bsp-only.yaml configuration file:

_images/admin_panel_bsp_only.png

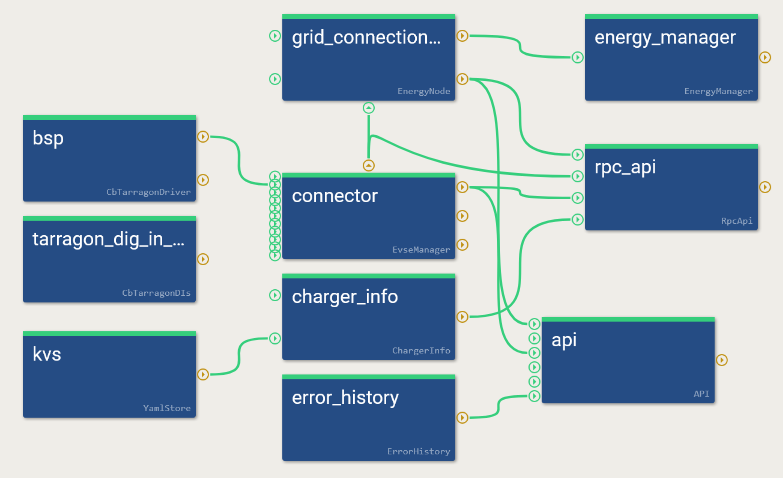

Fig. 6: EVerest admin panel view of the bsp-only.yaml configuration

However, not all configuration parameters of the modules are shown here. Only those that deviate from the module’s default configuration need to be specified.

Each module has a specific configuration file called “manifest.yaml”, located in the module’s main directory (“/usr/libexec/everest/modules/{module_name}”). This file is used by the EVerest stack to verify configuration consistency and to load the default module configuration. As a user the manifest.yaml can also be used in order to check which configurations are possible and how the default values are set.

The hardware related tasks are mainly handled by the CbTarragonDriver module. To view the content of the module’s manifest file, use the following command:

less /usr/libexec/everest/modules/CbTarragonDriver/manifest.yaml

If you want to change a configuration parameter of a module, which is not part of your EVerest YAML configuration file, just copy the specific configuration key from the “manifest.yaml” file of the module to the module specific “config_module” space in your EVerest configuration and adjust the value. If a default value in the manifest file meets your requirements, there is no need to redefine it in your EVerest configuration.

Note

Do not modify the manifest.yaml file directly to change default behavior. Always make adjustments in your EVerest configuration file to override the default values of the module parameters.

Here is an example of how to change the “connector_type” parameter of the CbTarragonDriver module to “IEC62196Type2Cable” in the EVerest configuration file.

Snippet of an EVerest configuration file:

tarragon_bsp:
  module: CbTarragonDriver
  config_module:
    contactor_1_feedback_type: none
    connector_type: IEC62196Type2Cable

By following these guidelines, you can now customize and manage your EVerest charging stack configuration to suit your hardware and application requirements. After adjusting the configuration file, you have to restart the EVerest charging stack to apply the changes:

systemctl restart everest

Note

You can also use the EVerest admin panel to adjust the EVerest configuration in a GUI. This tool must currently be installed manually on your developer computer, because the resources on the board are limited. Please note that the tool can only display a configuration correctly if all interface and module descriptions are provided.

Note

If you have made a mistake in the configuration file, the EVerest charging stack will not start. Therefore, it is recommended to back up the original configuration file before making changes.

Starting and Monitoring the Charging Process

Before we start the first charging session, we shall open the EVerest log to monitor the charging process. The EVerest log is stored in the systemd journal and can be accessed via the journalctl command. The journalctl command provides a lot of options to filter the log messages. Now just type “journalctl -f -u everest -n 50” to see the last 50 log messages of the EVerest charging stack and to follow the charging process in real time. For more information about the EVerest log, see the Logging and Debugging chapter.

The EVerest log should look like this:

root@tarragon:~# journalctl -fu everest -n 100
2026-04-23T13:31:28.484265+0200 tarragon manager[11218]: [INFO] manager          ::   ________      __                _
2026-04-23T13:31:28.493402+0200 tarragon manager[11218]: [INFO] manager          ::  |  ____\ \    / /               | |
2026-04-23T13:31:28.493402+0200 tarragon manager[11218]: [INFO] manager          ::  | |__   \ \  / /__ _ __ ___  ___| |_
2026-04-23T13:31:28.493402+0200 tarragon manager[11218]: [INFO] manager          ::  |  __|   \ \/ / _ \ '__/ _ \/ __| __|
2026-04-23T13:31:28.493402+0200 tarragon manager[11218]: [INFO] manager          ::  | |____   \  /  __/ | |  __/\__ \ |_
2026-04-23T13:31:28.493402+0200 tarragon manager[11218]: [INFO] manager          ::  |______|   \/ \___|_|  \___||___/\__|
2026-04-23T13:31:28.493402+0200 tarragon manager[11218]: [INFO] manager          ::
2026-04-23T13:31:28.493402+0200 tarragon manager[11218]: [INFO] manager          :: everest-framework 0.25.0 2026.02.0-54-g1b2d3e15-dirty
2026-04-23T13:31:28.496361+0200 tarragon manager[11218]: [INFO] manager          :: everest-core 2026.02.0 2026.02.0-54-g1b2d3e15-dirty
2026-04-23T13:31:28.496361+0200 tarragon manager[11218]: [INFO] manager          ::
2026-04-23T13:31:28.496361+0200 tarragon manager[11218]: [INFO] manager          :: Using MQTT broker localhost:1883
2026-04-23T13:31:28.593300+0200 tarragon manager[11218]: [INFO] manager          :: Boot mode is set to YamlFile, loading module configs from YAML file
2026-04-23T13:31:28.593300+0200 tarragon manager[11218]: [INFO] manager          :: Loading config file at: /etc/everest/bsp-only.yaml
2026-04-23T13:31:28.825306+0200 tarragon manager[11218]: [INFO] manager          :: Config loading completed in 336ms
2026-04-23T13:31:28.837998+0200 tarragon manager[11218]: [INFO] manager          :: Starting 10 modules
2026-04-23T13:31:31.070054+0200 tarragon manager[11227]: [INFO] charger_info:Ch  :: Module charger_info initialized [1802ms]
2026-04-23T13:31:31.212788+0200 tarragon manager[11229]: [INFO] energy_manager:  :: Module energy_manager initialized [1806ms]
2026-04-23T13:31:31.224860+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: chargebyte's Hardware EVerest Modules (version: 0.30.0)
2026-04-23T13:31:31.258620+0200 tarragon manager[11225]: [INFO] api:API          :: Module api initialized [2065ms]
2026-04-23T13:31:31.424270+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Contactor feedback type: 'none'
2026-04-23T13:31:31.424270+0200 tarragon manager[11226]: [WARN] bsp:CbTarragonD  :: The contactor has the feedback pin not connected. This is not recommended.
2026-04-23T13:31:31.563297+0200 tarragon manager[11230]: [INFO] error_history:E  :: Using database at "/tmp/error_history.db"
2026-04-23T13:31:31.563297+0200 tarragon manager[11230]: [INFO] error_history:E  :: Checking database
2026-04-23T13:31:31.617262+0200 tarragon manager[11232]: [INFO] kvs:YamlStore    :: Module kvs initialized [2074ms]
2026-04-23T13:31:31.662480+0200 tarragon manager[11230]: [INFO] error_history:E  :: Module error_history initialized [2188ms]
2026-04-23T13:31:31.668468+0200 tarragon manager[11231]: [INFO] grid_connection  :: Module grid_connection_point initialized [2177ms]
2026-04-23T13:31:31.684569+0200 tarragon manager[11241]: [INFO] tarragon_dig_in  :: chargebyte's Tarragon driver for configuration of digital input reference PWM (version: 0.30.0)
2026-04-23T13:31:31.721692+0200 tarragon manager[11241]: [INFO] tarragon_dig_in  :: Enabled digital input reference PWM 2084000.pwm, channel 0 with period 40000 and duty cycle 20000
2026-04-23T13:31:31.721692+0200 tarragon manager[11241]: [INFO] tarragon_dig_in  :: Module tarragon_dig_in_ref initialized [2079ms]
2026-04-23T13:31:31.825234+0200 tarragon manager[11228]: [INFO] connector:EvseM  :: Module connector initialized [2388ms]
2026-04-23T13:31:31.881241+0200 tarragon manager[11233]: [INFO] rpc_api:RpcApi   :: libwebsockets version (compiled/runtime): 4.5.2-v4.5.2 / 4.5.2-v4.5.2
2026-04-23T13:31:31.881241+0200 tarragon manager[11233]: [INFO] rpc_api:RpcApi   :: Module rpc_api initialized [2179ms]
2026-04-23T13:31:31.987420+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Module bsp initialized [2730ms]
2026-04-23T13:31:31.987420+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Control Pilot Observation Thread started
2026-04-23T13:31:31.988663+0200 tarragon manager[11218]: [INFO] manager          :: Clearing retained topics published by manager during startup
2026-04-23T13:31:31.988663+0200 tarragon manager[11218]: [INFO] manager          :: 🚙🚙🚙 All modules are initialized. EVerest up and running [3506ms] 🚙🚙🚙
2026-04-23T13:31:32.019335+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Proximity Pilot Observation Thread started
2026-04-23T13:31:33.192126+0200 tarragon manager[11233]: [INFO] rpc_api:RpcApi   :: WebSocket Server running on port 8080 (interface "lo" only) without TLS
2026-04-23T13:31:37.212073+0200 tarragon manager[11228]: [INFO] connector:EvseM  :: Cleaning up any other transaction on start up
2026-04-23T13:31:37.279012+0200 tarragon manager[11228]: [INFO] connector:EvseM  :: 🌀🌀🌀 Ready to start charging 🌀🌀🌀
2026-04-23T13:31:37.279012+0200 tarragon manager[11228]: [WARN] connector:EvseM  :: No powermeter value received yet!
2026-04-23T13:31:37.368213+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_enable: Applying cached duty cycle of 100.00%
2026-04-23T13:31:37.384560+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: CP state change from PowerOn to A, U_CP+: 11985 mV, U_CP-: 75 mV, PWM: 100.00%)
2026-04-23T13:31:37.472125+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_cp_state_X1: Setting new duty cycle of 100.00%
2026-04-23T13:31:37.498506+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: PP ampacity change from None to A_20 (U_PP: 1561 mV)
2026-04-23T13:31:37.546357+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Current (unchanged) state: Contactor@R1/S1 (OPEN, UNUSED)
2026-04-23T13:31:37.601042+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_cp_state_X1: Setting new duty cycle of 100.00%
2026-04-23T13:31:37.632123+0200 tarragon manager[11228]: [INFO] connector:EvseM  :: All errors cleared
2026-04-23T13:31:37.634488+0200 tarragon manager[11228]: [INFO] connector:EvseM  :: All errors cleared

Before plugging in the IEC 62196 Type 2 EVSE Test Adapter, please make sure that the CP state of the EVSE Test Adapter is set to “B” and the current limit (adjustable via the PP state) is configured to 13A. Now you are ready to start the first charging session with EVerest and you can plug in the IEC 62196 Type 2 EVSE Test Adapter.

After plugging in the IEC 62196 Type 2 EVSE Test Adapter, a CP state change from “A” to “B” should be visible in the EVerest log. By default, the authentication is disabled in the bsp-only.yaml configuration. Therefore, the duty cycle should directly switch from 100% to ~21.67%. The duty cycle change indicates 16A to the EV and the EVSE is now able to supply power to the EV.

The last EVerest log messages should look like this:

2026-04-23T13:31:38.991562+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: CP state change from A to B, U_CP+: 8909 mV, U_CP-: -12 mV, PWM: 100.00%)
2026-04-23T13:31:39.072353+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Current (unchanged) state: Contactor@R1/S1 (OPEN, UNUSED)
2026-04-23T13:31:39.267367+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Read PP ampacity value: A_13 (U_PP: 2085 mV)
2026-04-23T13:31:39.281841+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Proximity Pilot Observation Thread started
2026-04-23T13:31:39.521493+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_pwm_on: Setting new duty cycle of 21.67% (13.0 A)

Now the charging process can be started by a CP state change from “B” to “C” via the IEC 62196 Type 2 EVSE Test Adapter.

Note

CP state “D” (EVSE with ventilation) is currently not supported by the CbTarragonDriver module.

After switching the CP state from “B” to “C”, the EVSE contactor should close and the charging process should start. The last EVerest log messages should look like this:

2026-04-23T13:31:51.386933+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: CP state change from B to C, U_CP+: 6006 mV, U_CP-: -11845 mV, PWM: 21.67%)
2026-04-23T13:31:51.432216+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_allow_power_on: request to CLOSE the contactor
2026-04-23T13:31:51.432216+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Current state: Contactor@R1/S1 (CLOSED, UNUSED)

The charging process can be stopped by a CP state change from “C” to “B” via the IEC 62196 Type 2.

The last EVerest log messages should look like this:

2026-04-23T13:32:17.921085+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: CP state change from C to B, U_CP+: 8880 mV, U_CP-: -11836 mV, PWM: 21.67%)
2026-04-23T13:32:17.986228+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_allow_power_on: request to OPEN the contactor
2026-04-23T13:32:17.986228+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Current state: Contactor@R1/S1 (OPEN, UNUSED)

Now the charging process is stopped and the IEC 62196 Type 2 EVSE Test Adapter can be unplugged from the socket outlet. Alternatively, the charging process can be started again by a CP state change from “B” to “C”.

The last EVerest log messages after removing the plug should look like this:

2026-04-23T13:32:53.847329+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: CP state change from B to A, U_CP+: 11908 mV, U_CP-: -11836 mV, PWM: 21.67%)
2026-04-23T13:32:53.878577+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: PP noticed plug removal from socket (U_PP: 3295 mV)
2026-04-23T13:32:53.913897+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_pwm_off: Setting new duty cycle of 100.00%
2026-04-23T13:32:53.928272+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: Current (unchanged) state: Contactor@R1/S1 (OPEN, UNUSED)
2026-04-23T13:32:54.047689+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_pwm_off: Setting new duty cycle of 100.00%
2026-04-23T13:32:54.297602+0200 tarragon manager[11226]: [INFO] bsp:CbTarragonD  :: handle_pwm_off: Setting new duty cycle of 100.00%
2026-04-23T13:32:54.343294+0200 tarragon manager[11228]: [INFO] connector:EvseM  :: All errors cleared

Congratulations! You have successfully completed your first charging session with the EVerest charging stack and the Charge Control C. Now you are prepared to start your own charging project and adjust your setup to your needs. The following chapters will help you understand the EVerest charging stack and Charge Control C in more detail and gain deeper insight into the configuration.
